Analysis Classes

An initial reading of the use cases suggests that the following will be part of the system.

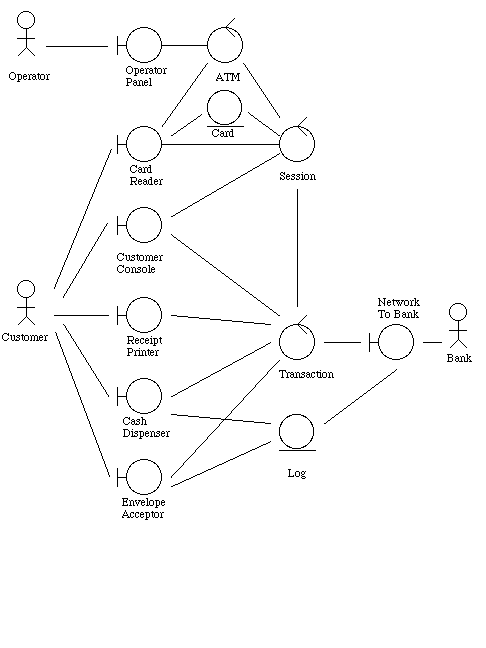

This leads to the following diagram of analysis classes:



Click on a class icon to go to links to various kinds of information about it


[ Analysis Class Diagram ] class OperatorPanel class CardReader class CustomerConsole class ReceiptPrinter class CashDispenser class EnvelopeAcceptor class ATM class Card class Session class Transaction class Log class NetworkToBank
