Mathematical Development

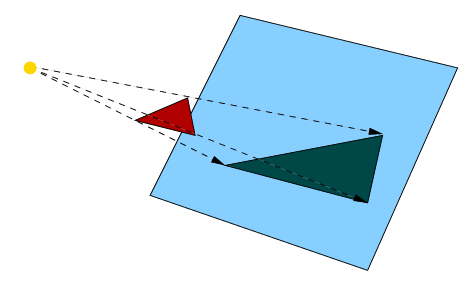

Suppose we have single light source and we want to draw the shadow that would be cast by a particular polygon onto a shadow plane, typically containing other polygons. If all the polygons casting shadows are convex this can be done by projecting them onto the shadow plan and drawing the corresponding shadow figure.

Note that this is a 3D to 2D projection.
